Chemical Injection Pumps & Assorted Valves

INJECTION ATOMIZING NOZZLES

RETRACTABLE





TEXSTEAM

Series 1200 Beam Driven Injector









Plunger Size Maximum Discharge Pressure Maximum Volume Output
Simplex Unit Duplex Unit
3/16'' 3,000 PSI 4.5 Pints/ Day 9 Pints/Day
211.5 KG/CM² 2 Liters/Day 4 Liters/Day
1/4'' 1,500 PSI 7 Pints/Day 14.5 Pints/Day
105.5 KG/CM² 3.5 Liters/Day 6.5 Liters/Day
3/8'' 1,000 PSI 18.0 Pints/Day 36.0 Pints/Day
70.5 KG/CM² 8.5 Liters/Day 17 Liters/Day
1/2'' 500 PSI 32.0 Pints/Day 64 Pints/Day
35 KG/CM² 15 Liters/Day 31 Liters/Day

Gas/Pneumatic Driven Injector Series 6100



Plunger Size Maximum Discharge Pressure Maximum Volume Output
1 1/4'' 9,000 PSI 1.5 Gallons/Minute
634 KG/CM² 6 Liters/Minute
2 3/4'' 1,800 PSI 10 Gallons/Minute
127 KG/CM² 37 Liters/Minute
4'' 900 PSI 20 Gallons/Minute
63.5 KG/CM² 75 Liters/Minute

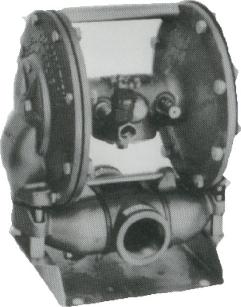

Series 9000 Utility Pump





Specifications

Min./max. power gas pressure 5/100 PSI
Maximum recommended gas exhaust back pressure 20 PSI
Maximum recommended gas consumption 50 CFM
Maximum recommended fluid discharge pressure 60 PSI
Maximum fluid suction lift 29 Ft. Water
Min./max. recommended fluid capacity 1/60 GPM
Maximum recommended strokes/minute 250 SPM
Power gas safety valve set at 125 PSI

Scorpion

Model Number

Plunger Size

SPM

Maximum Output @

1,000 PSI         70 KG/CM²

2204

3/16''

15

2 GPD 8 Liters/Day

30

5 GPD 16.5 Liters/Day

60

8.5 GPD 32.5 Liters/Day

2201

1/4''

15

4 GPD 14.5 Liters/Day

30

7.5 GPD 28.5 Liters/Day

60

15.5 GPD 57.5 Liters/Day

2203

3/8''

15

8.5 GPD 32.5 Liters/Day

30

17 GPD 64.5 Liters/Day

60

34.5 GPD 129.5 Liters/Day

2205

1/2''

15

15.5 GPD 57.5 Liters/Day

30

31 GPD 115 Liters/Day

60

61.5 GPD 230 Liters/Day


Gas/Pneumatic Driven Injector Series 3700



Plunger Size

Maximum Discharge Pressure Maximum Volume Output
Simplex Unit Duplex Unit

3/16''

3,000 PSI 8 Pints/Day 16 Pints/Day
211 KG/CM² 4 Liters/Day 7.5 Liters/Day

1/4''

1,500 PSI 14 Pints/Day 28 Pints/Day
105 KG/CM² 6.5 Liters/Day 13.5 Liters/Day

3/8''

1,000 PSI 36 Pints/Day 72 Pints/Day
70 KG/CM² 17 Liters/Day 34 Liters/Day

1/2''

500 PSI 60 Pints/Day 120 Pints/Day
35 KG/CM² 28 Liters/Day 56.5 Liters/Day

Gas/Pneumatic Driven Injector Series 5100





Plunger Size

Maximum Discharge Pressure Maximum Volume Output

3/16''

1,500 PSI 4 Gallons/Day
106 KG/CM² 16/Liters/Day

1/4''

1,500 PSI 7.5 Gallons/Day
106 KG/CM² 28.5 Liters/Day

3/8''

1,500 PSI 17 Gallons Day
106 KG/CM² 63.5 Liters/Day

1/2''

1,500 PSI 32 Gallons/Day
106 KG/CM² 121 Liters/Day

Gas/Pneumatic Driven Injector Series 5000





Plunger Size

Maximum Discharge Pressure Maximum Volume Output

1/4''

12,000 PSI 16 Gallons/Day
845 KG/CM² 60.5 Liters/Day

3/8''

12,000 PSI 43 Gallons/Day
845 KG/CM² 162.5 Liters/Day

1/2''

12,000 PSI 85 Gallons/Day
845 KG/CM² 322 Liters/Day

3/4''

5,000 PSI 160 Gallons/Day
352 KG/CM² 605.5 Liters/Day

1''

3,000 PSI 320 Gallons/Day
211 KG/CM² 1,211 Liters/Day

1 1/4''

2,000 PSI 500 Gallons/Day
141 KG/CM² 1,892 Liters/Day

Portable Steam Generators










Model Output

25M

2.5 million BTU/HR
35M 3.5 million BTU/HR
70M 7.5 million BTU/HR




Texseal D Series Block Valves


Fire Safe D Series Block Valves




Super G Block Valves

Combine the best features of plug valves and trunnion-mounted ball valves.


Check Valves

*Viton is a registered trademark of DuPont.


EOR Injection Assemblies

Used in secondary and tertiary recovery methods.  Texsteam can supply complete wellhead assemblies for injection pressures up to 2500 PSI
